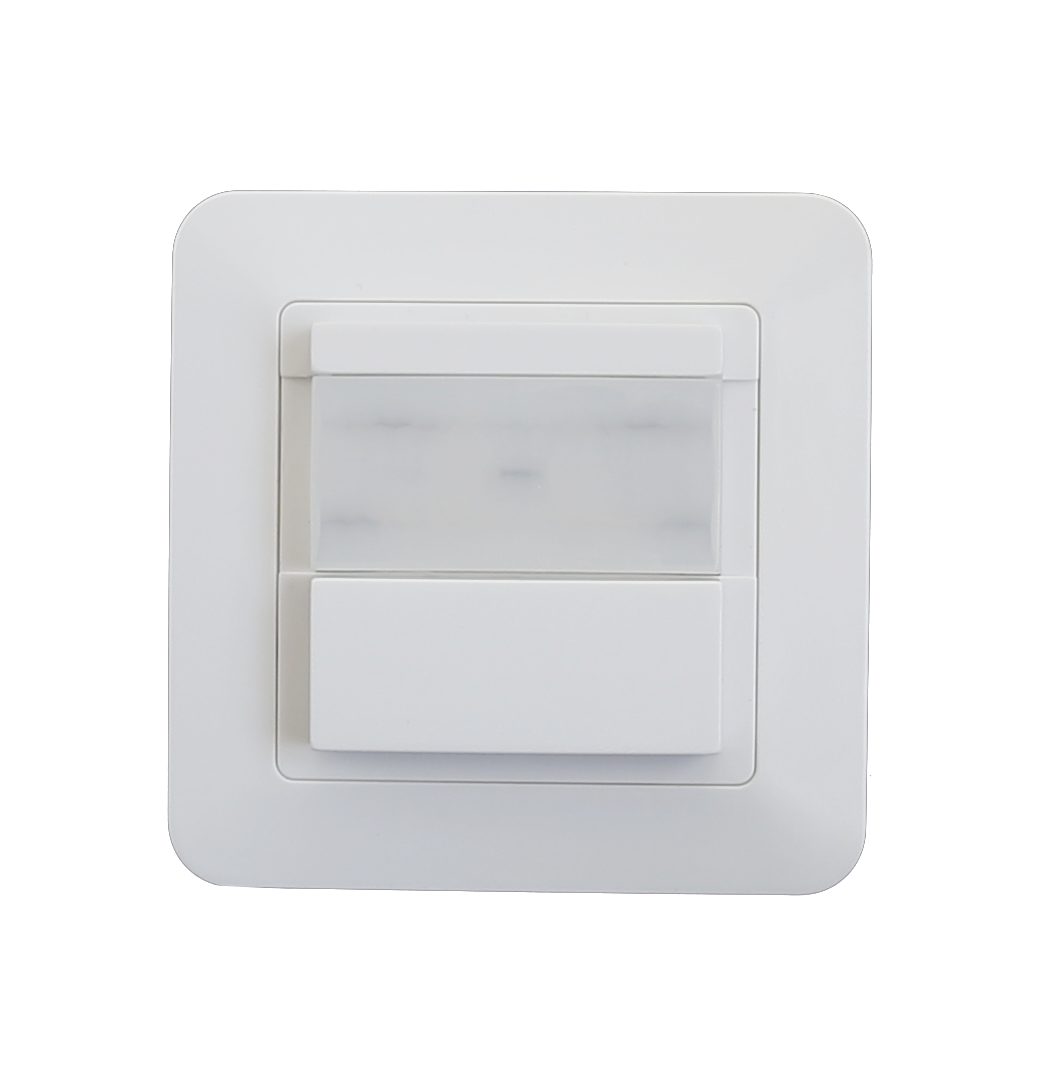

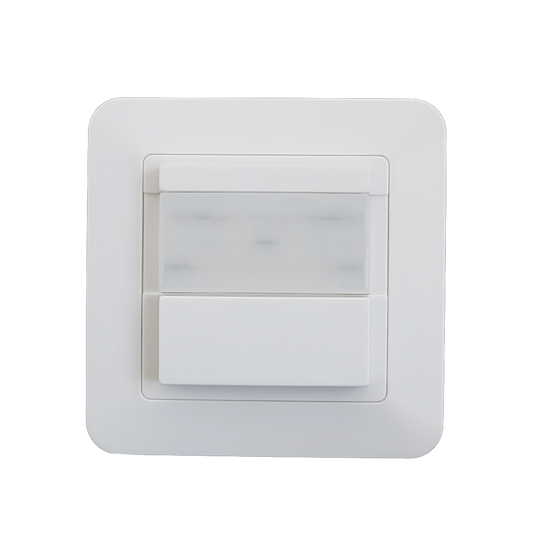

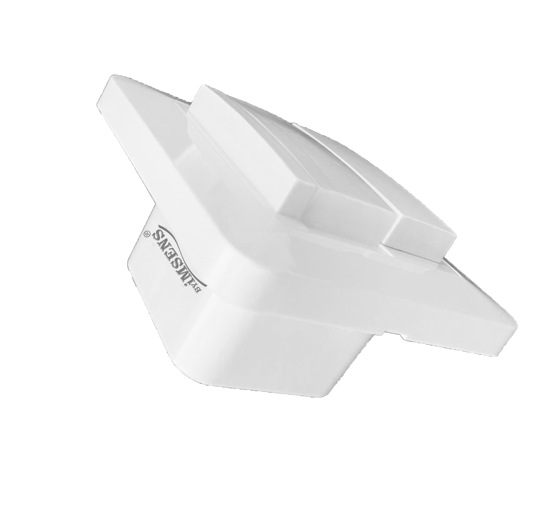

Motion detector with infrared sensor for flush-mounted installation.
This detector is easy to install and is ideal for replacing existing flush-mounted switches in universal junction boxes, with 2- or 3-wire wiring, with sensor-equipped switches.
With a range of 10 metres and a detection angle of 180°, it features an integrated selector switch offering three functions: ON, OFF and PIR – AUTO sensor.
It allows for continuous adjustment of the time and twilight setting.
Suitable for wall mounting, it is ideal for use in entrance halls, lift lobbies or stairwells.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 500W (incandescent and fluorescent lamps) / 200W (energy saving lamps and LED) |
| Resistive load | 500W |
| Inductive load | 200W |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 180º |
| Detection range | 10m |
| Type of protection | IP20 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg - 7 min |
| Ideal mounting height | 0.8m - 1.8m -> wall |
| Application | Built-in - wall |
| Measures | 80mm x 50.10mm |
| Color | White |
