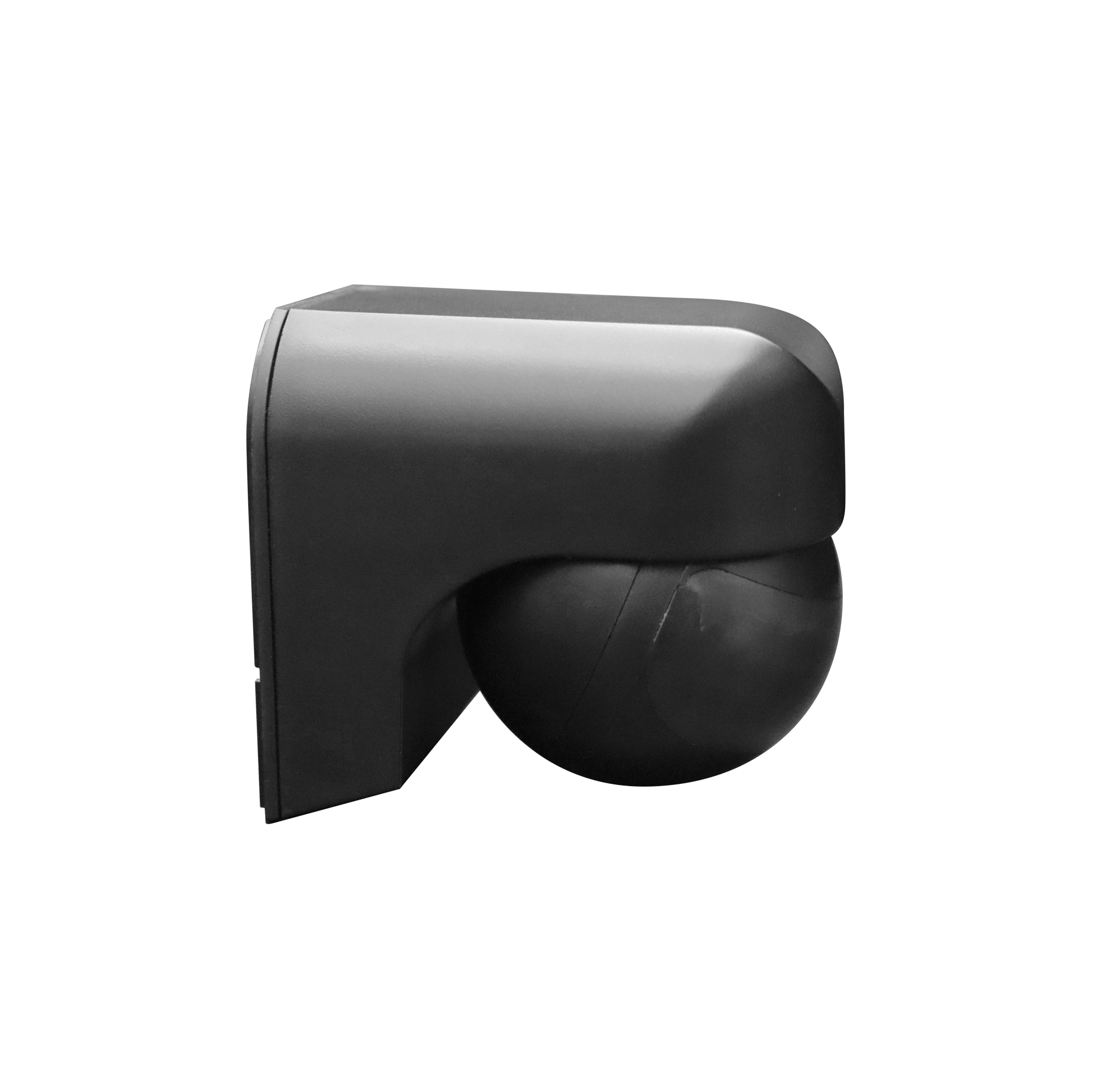

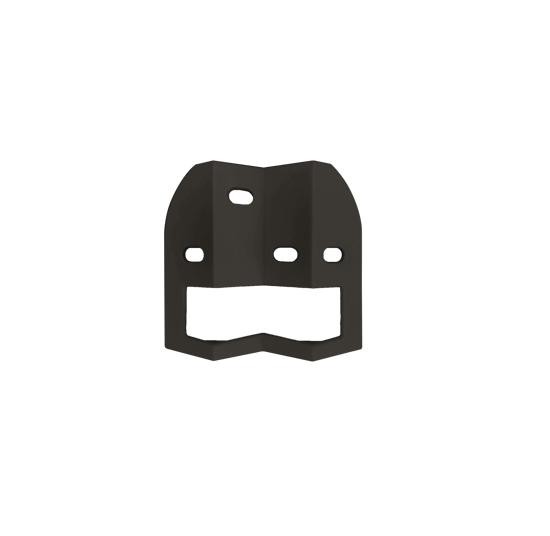

Surface-mounted motion detector with an infrared sensor for installation on walls, ceilings, corners or edges, supplied with the appropriate mounting bracket.
With a range of 12 metres, it provides a wide detection field, as the lens can be rotated in any direction around its axis.
The detection area can be restricted using the included masks.
This detector has a high switching capacity, thus supporting high loads.
It allows for continuous adjustment of the time and twilight setting.
Its protection rating (IP65) allows for indoor and outdoor installation, and it can be exposed to the elements.
It is the ideal product for detecting movement in open, wide-open spaces and can be installed at various heights to monitor human movement.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 180º |
| Detection range | 12m |
| Type of protection | IP65 |
| Twilight Regulation | 3 - 2000 Lux |
| Time adjustment | 10 seg – 15 min |
| Ideal mounting height | 2m - 3m -> ceiling | 1.8m - 5m -> wall |
| Application | Protruding - wall, ceiling, corners and edges |
| Measures | 78mm x 71mm (without accessory) | 96.8mm x 71mm (with accessory) |
| Color | White or black |
| Masks | Includes |
| Accessory | Includes |
