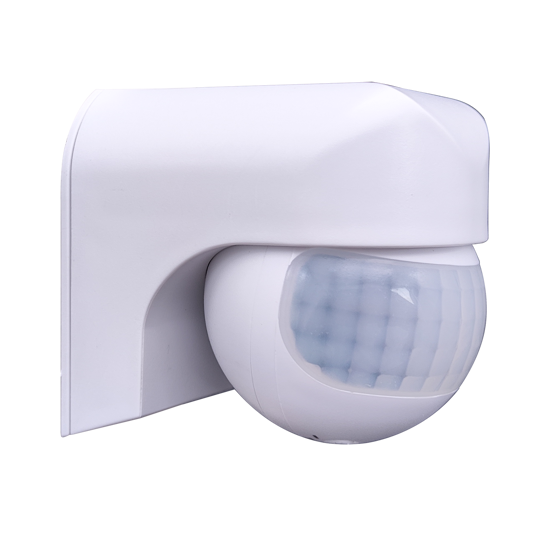

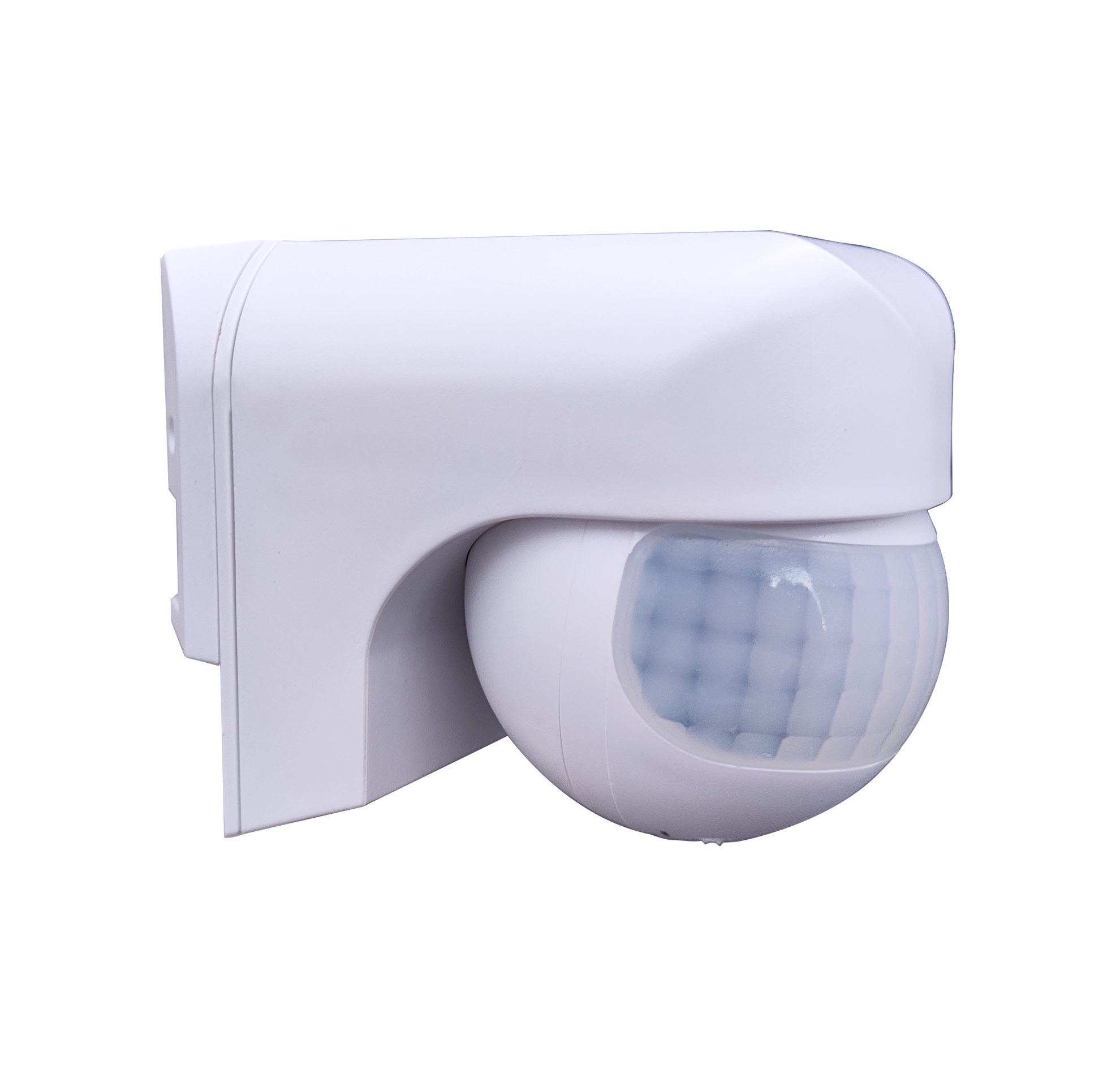

Motion detector with infrared sensor for wall, ceiling, corner and edge mounting. Ideal for monitoring grounds, factories and outdoor facilities, medium-sized facades.
The total switching power of the sensor is 2000W.
Detection range: the wide detection range can be adjusted on all sides. The detection range can be adjusted as desired, but the orientation of the movement in the detection range has a major influence on sensitivity.
Automatically identifies day and night: Ambient light can be adjusted as desired: when turned to SUN (max.), it will work day and night; when turned to MOON (min.), it will only work in environments below 3LUX.
The delay time is added continuously: when it receives the second induction signals after the first induction, the sensor calculates the time once more from the first delay time based on the first time. The delay time is adjustable, with a minimum of 10sec ± 3sec and a maximum of 15min ± 3min.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 180º |
| Detection range | 12m |
| Type of protection | IP65 |
| Twilight Regulation | 3 - 2000 Lux |
| Time adjustment | 10 seg – 15 min |
| Ideal mounting height | 2m - 3m -> ceiling | 1.8m - 5m -> wall |
| Application | Protruding - wall, ceiling, corners and edges |
| Measures | 78mm x 71mm (without accessory) | 96.8mm x 71mm (with accessory) |
| Color | White or black |
| Masks | Includes |

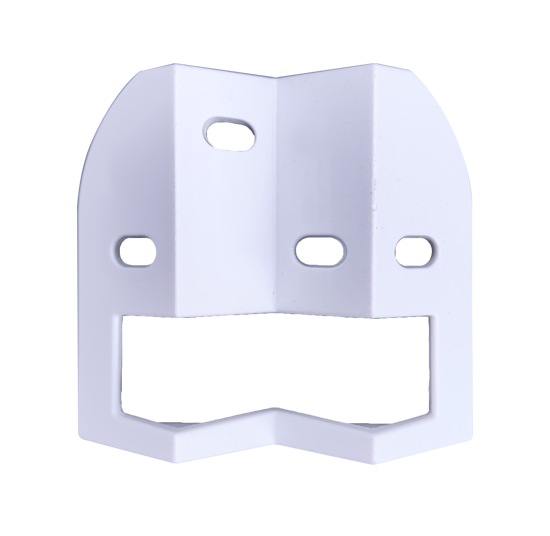

| Accessory | Includes |
