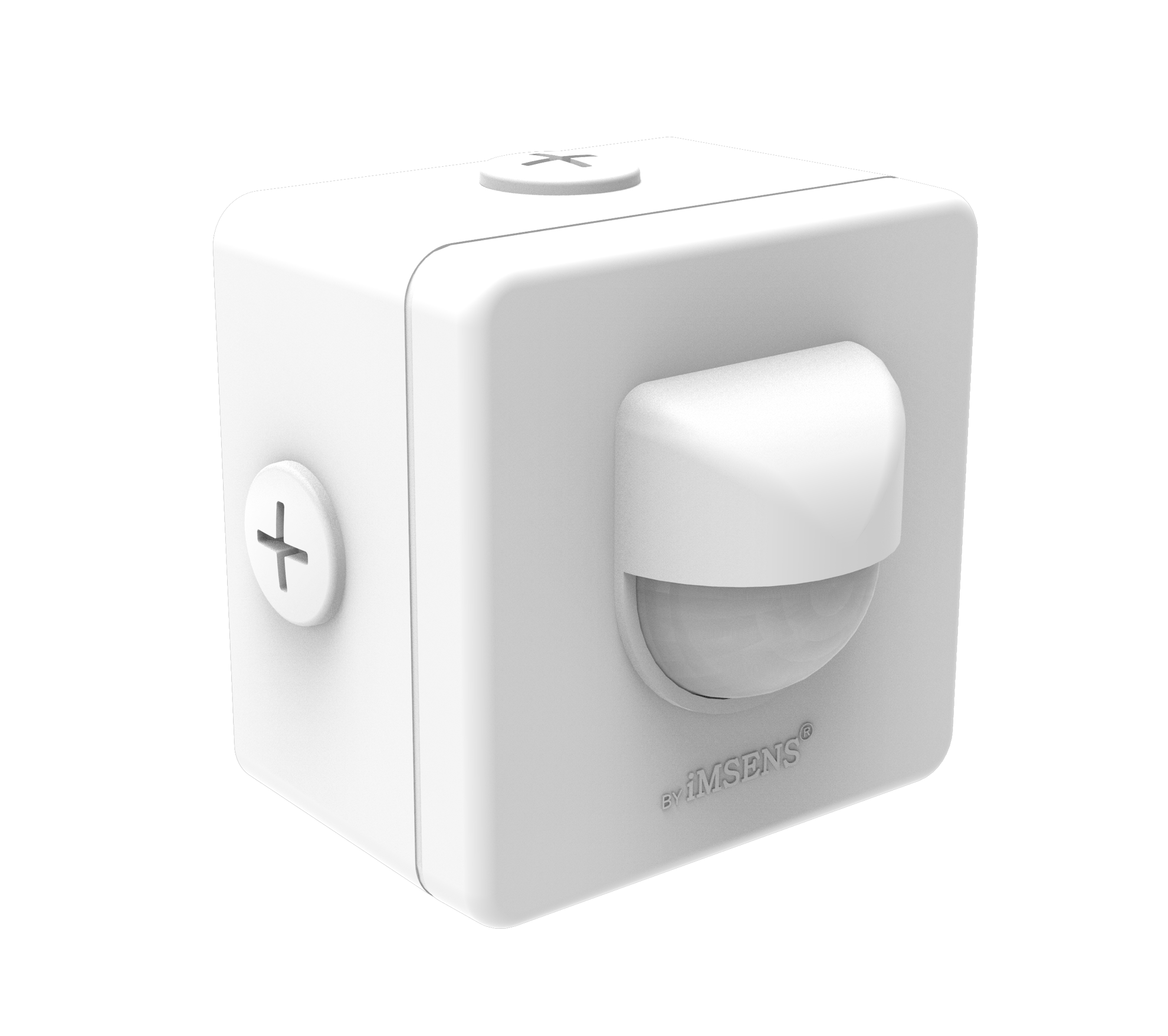

Motion detector with infrared sensor for surface-mounted or flush-mounted installation.
It can be installed in existing lighting systems with conventional, flush-mounted or surface-mounted installation boxes.
It allows for the simple replacement of conventional switches with sensor switches.
It enables continuous adjustment of the time and twilight control.
It can be fitted in an existing waterproof box or in a flush-mounted box that has already been installed, whilst maintaining its high level of water resistance.
This sensor can be programmed using potentiometers or via the RC3 remote control (sold separately).
It is the ideal product for monitoring corridors, stairwells, bathrooms, kitchens, basements, building entrances and other areas, as its high protection rating (IP65) protects it against the elements.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 200º |
| Detection range | 10m |
| Type of protection | IP65 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg – 30 min |
| Ideal mounting height | 0.8m - 1.8m -> wall |
| Application | Protruding or recessed - wall |
| Measures | 87mm x 78.3mm |
| Color | White |
| Command | Does not include |
