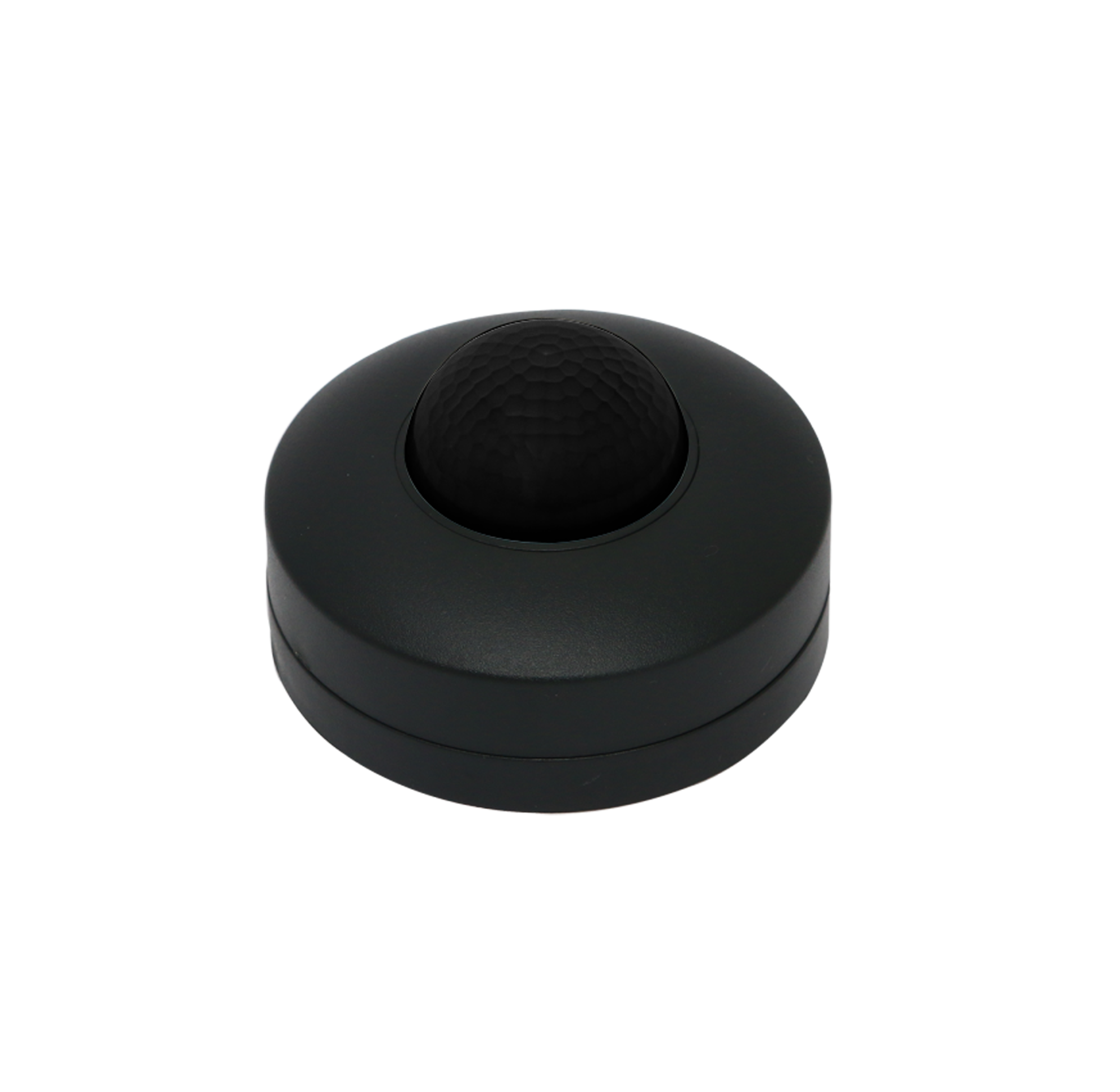

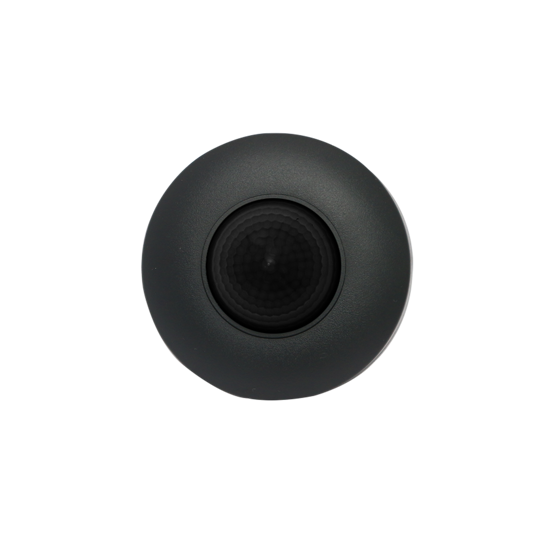

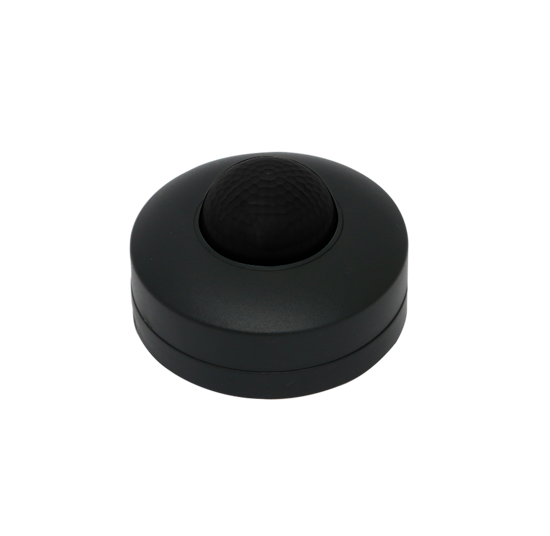

It is a surface-mounted infrared detector for ceilings.
Developed to meet the great need for detection in ceilings with low or high ceilings.
Easy to install for use in a wide range of applications: garages, corridors, rooms, entrance halls with large areas and heights.
It allows for continuous time adjustment and twilight regulation.
It can be surface mounted on the ceiling, making it ideal for both indoor and outdoor installations due to its degree of protection against the elements.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 1200W (incandescent and fluorescent lamps) / 300W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 14m |
| Type of protection | IP54 |
| Twilight Regulation | 10 - 2000 Lux |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg - 7 min |
| Ideal mounting height | 2.2m - 4m -> ceiling |
| Application | Overhanging - ceiling |
| Measures | 88mm x 49.5mm |
| Color | White or black |
