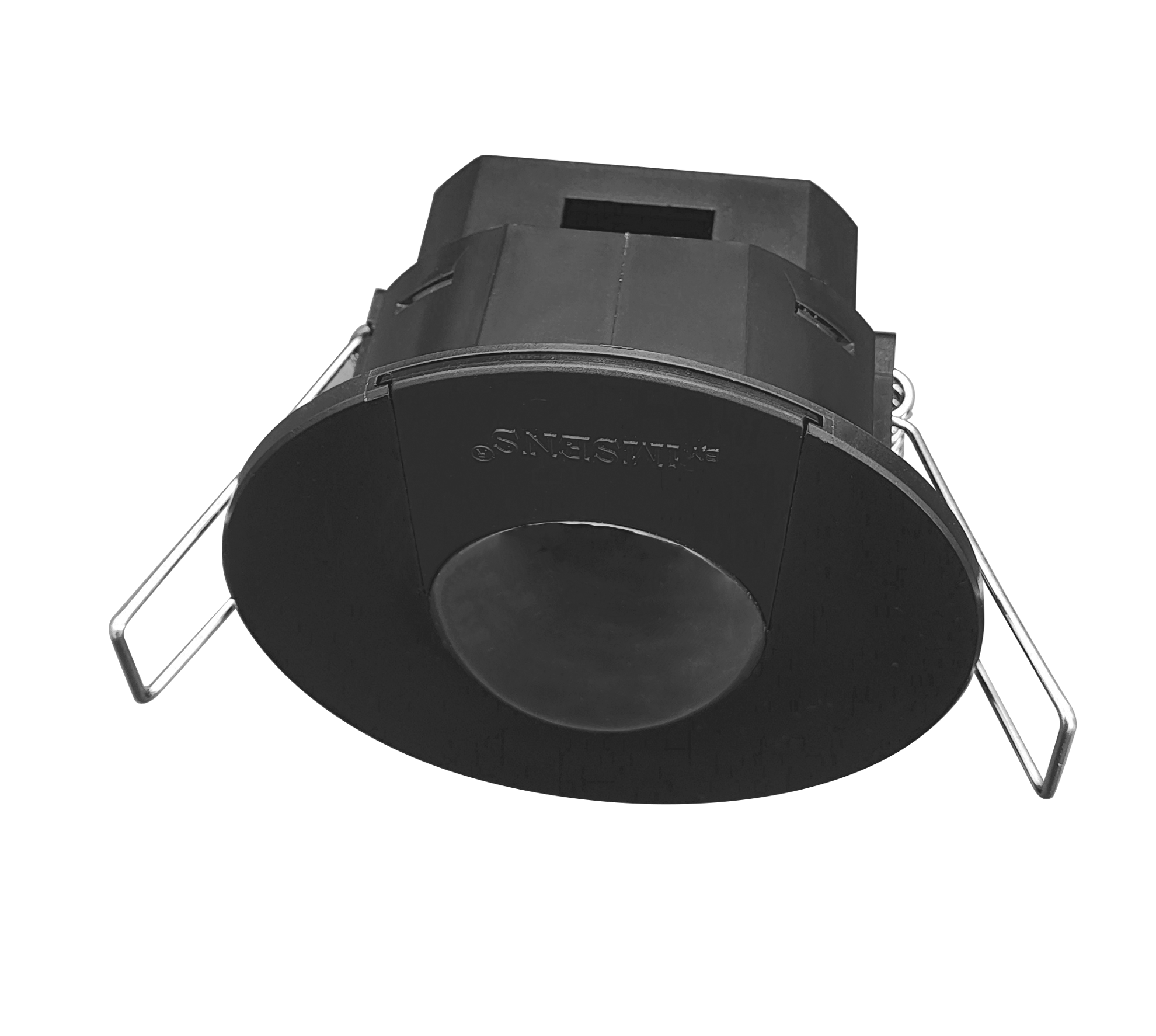

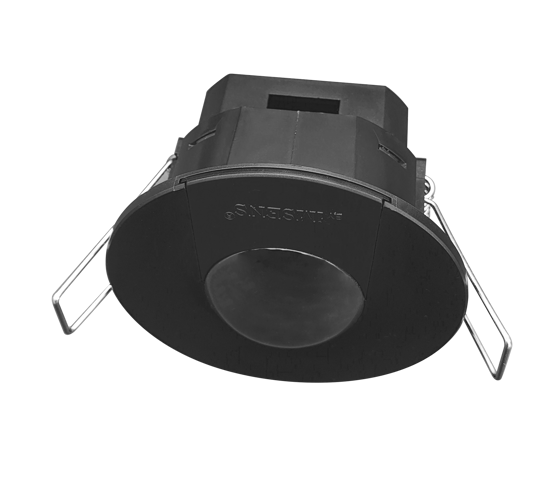

Recessed motion detector with infrared sensor for ceiling installation. With a total switching power of 2000W.
Automatically identifies day and night. The ambient light can be adjusted as desired: when set to SUN (max), the detector will work day and night; when set to MOON (min), it will only work in environments below 10LUX.
The delay time is added continuously: when it receives the second induction signals after the first induction, the sensor will calculate the time again from the first delay time based on the first time (set time). The delay time is adjustable, with a minimum of 10 seconds and a maximum of 15 minutes.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 12m |
| Type of protection | IP65 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg – 15 min |
| Ideal mounting height | 2.2m - 4m -> ceiling |
| Application | Built-in - ceiling |
| Measures | 61mm x 53.4mm |
| Color | White or black |
