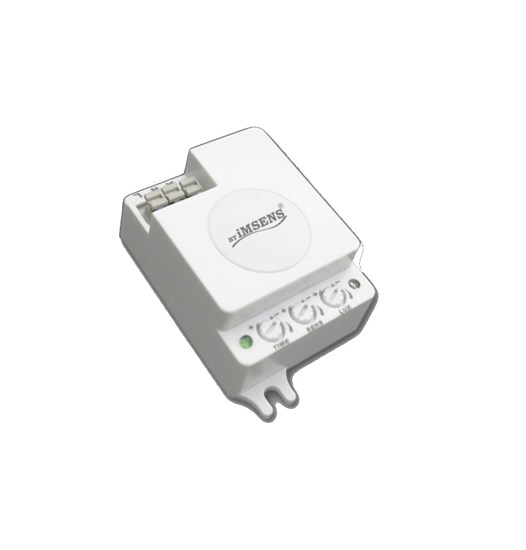

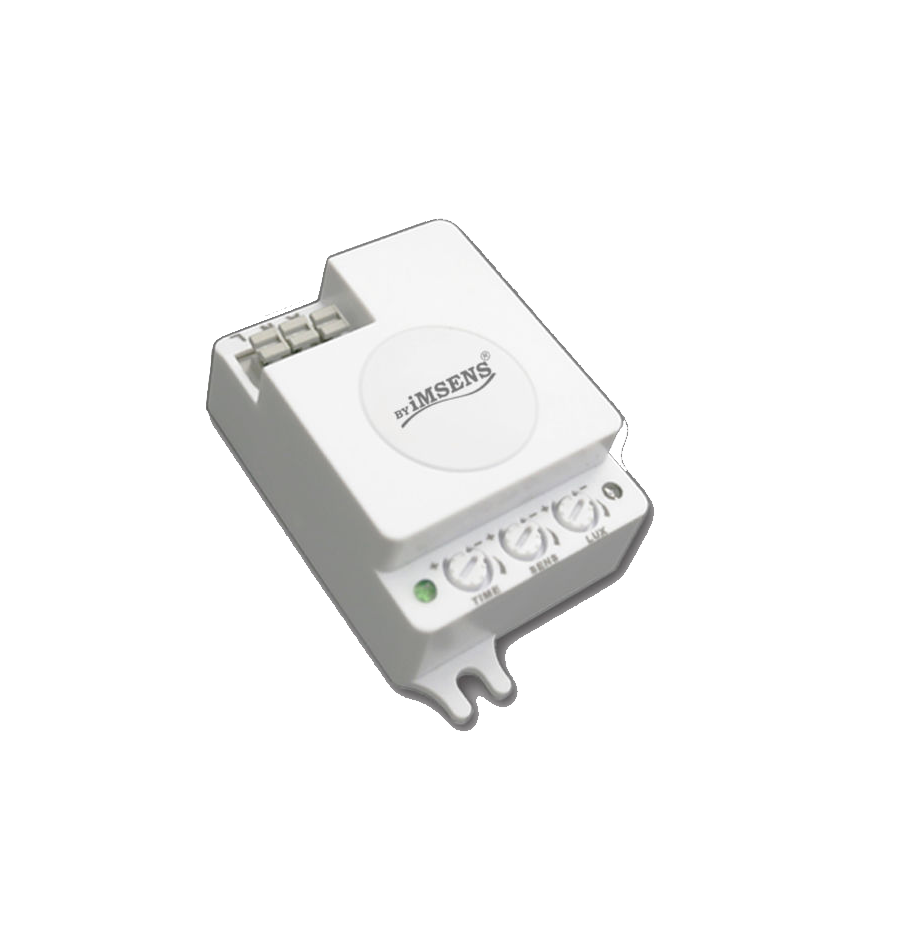

High-frequency motion detector with a wide range of applications.
Detects movement through the movement of objects and/or people.
The sensor emits shortwave signals and immediately receives the echo reflected from walls and adjacent objects.
As glass and thin walls do not pose any obstacle to these signals, the sensor can be installed inside light fittings or mounted above a plasterboard and/or wooden false ceiling.
It does not detect movement through obstacles made of iron, sheet metal, concrete or other materials of high density and thickness.
Please note that, due to its detection technology, it detects moving liquids as well as moving air masses (e.g. concealed pipework within plasterboard walls).
It allows for continuous adjustment of the time and twilight setting, as well as sensitivity adjustment via potentiometers.
| Attribute name | Attribute value |
|---|
| Sensor type | High Frequency |
| Power | 1200W (incandescent and fluorescent lamps) / 300W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 10m |
| Type of protection | IP20 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg – 15 min |
| Ideal mounting height | 2m - 5m -> ceiling| 1.5m - 3m -> wall |
| Application | Protruding or recessed - ceiling and wall |
| Color | White |
| Measures | 72mm x 42mm |
