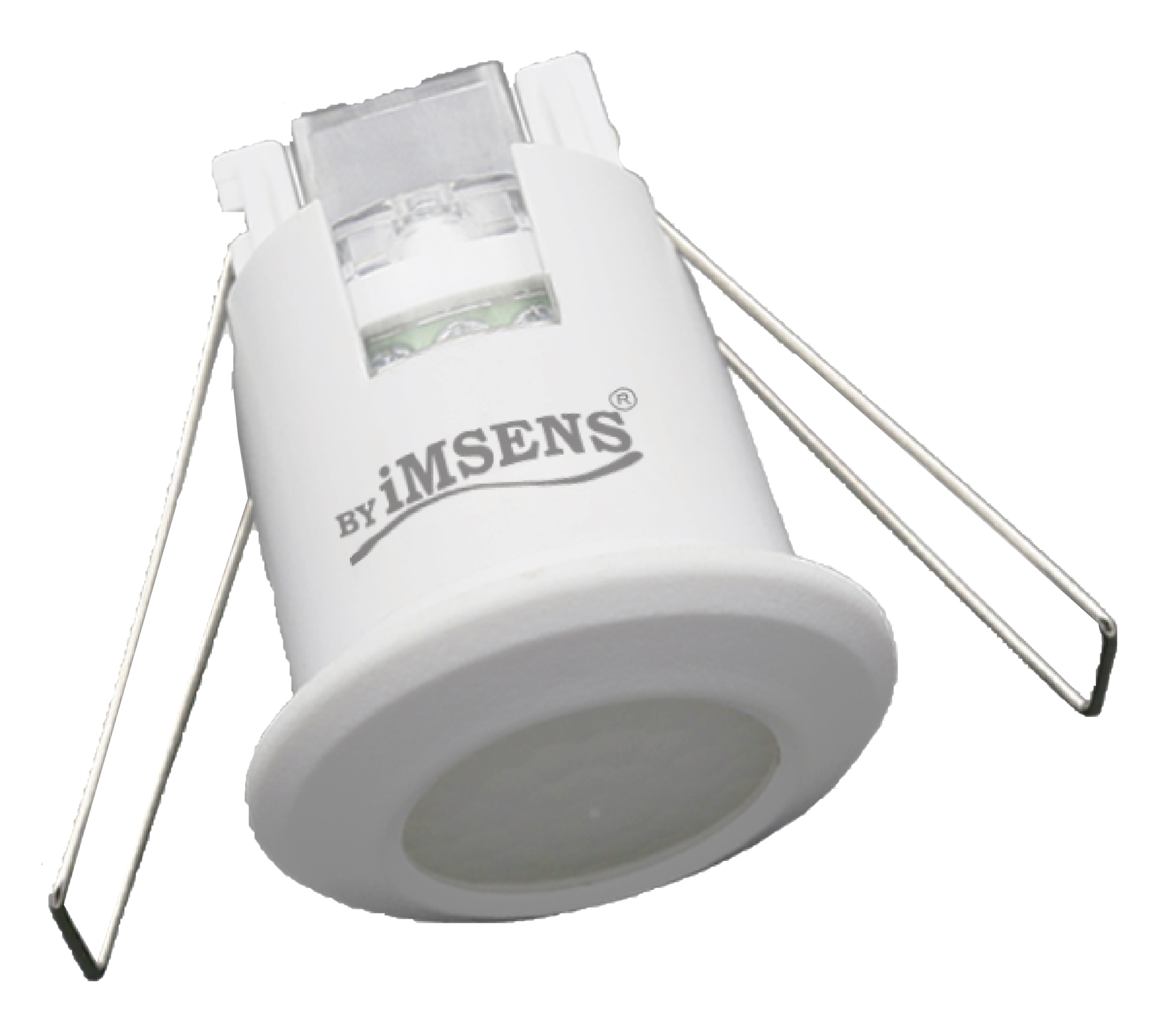

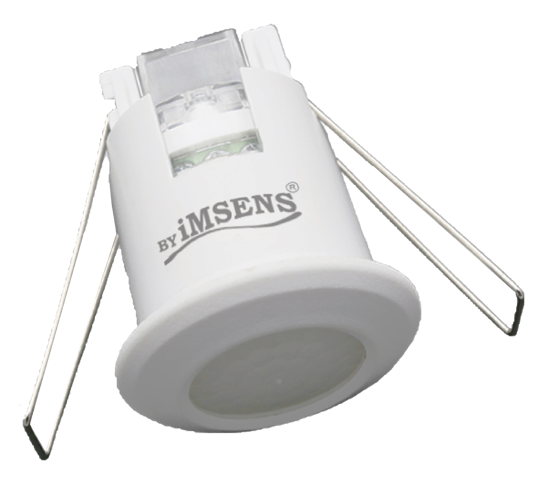

Motion detector with infrared sensor for flush-mounted installation in the ceiling.
With a 360° detection field and a range of 6 metres.
Ideal for almost invisible flush-mounted installation in the ceiling, with only the detector lens remaining visible.
Installation is quick and easy; simply remove the lens to make programming adjustments in a straightforward manner.
It allows for continuous adjustment of the timing and light output.
Ideal for use in bathrooms, changing rooms, small storage areas, stairwells and small entrance halls.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 800W (incandescent and fluorescent lamps) / 400W (energy saving lamps and LED) |
| Resistive load | 800W |
| Inductive load | 400W |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 6m |
| Type of protection | IP20 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg - 7 min |
| Ideal mounting height | 2.2m - 3m -> ceiling |
| Application | Built-in - ceiling |
| Measures | 49.8mm x 61mm |
| Color | White |
