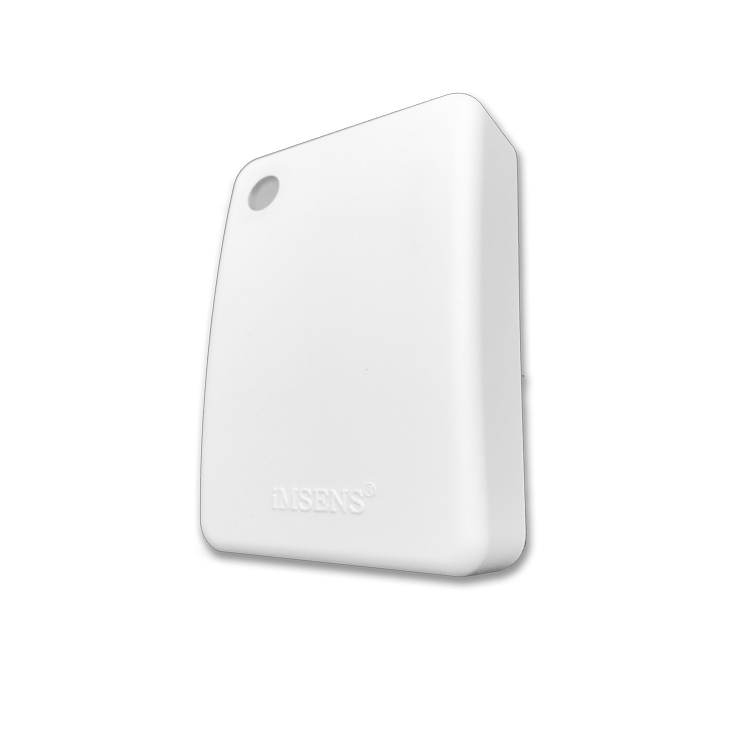

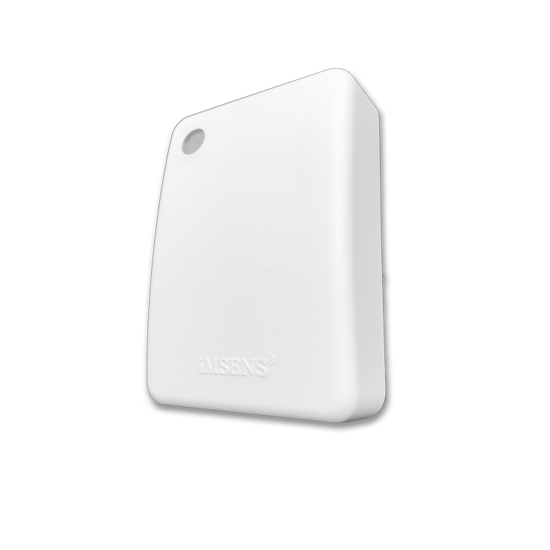

The twilight switch with timer that turns night into day.
This switch turns on the lighting depending on the ambient brightness.
The microprocessor-controlled twilight timer is ideal when you want to illuminate an area but parameterize its operating window to anticipate its shutdown in relation to sunrise.
However, this sensor has a DD function, which when programmed, will perform the normal twilight switch function.
It is ideal for display windows, commercial panels or other surfaces.
The variable economic night mode and the option of choosing whether to switch the light “on or off in the morning” are of particular interest if the light, despite having to be controlled at dusk, is not intended to be used during certain hours of the night.
In this mode, the light turns on at dusk, then turns off at night in an adjustable window, and turns on again in the morning if desired, while remaining off during the day.
It can be used both indoors and outdoors due to its high degree of protection that protects it against bad weather.
| Attribute name | Attribute value |
|---|
| Sensor type | Twilight photocell |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Type of protection | IP54 |
| Twilight Regulation | 10 Lux ON / 40 Lux OFF |
| Time adjustment | 1h - 12h D-D |
| Application | Salient - wall |
| Measures | 101.7mm x 70.3mm x 31.5mm |
| Color | White |
