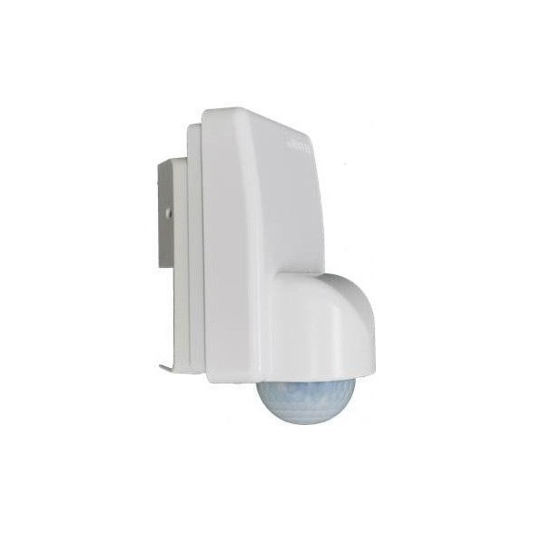

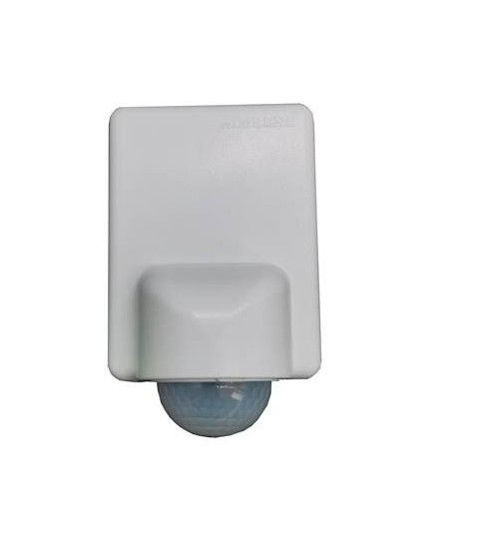

Motion detector with infrared sensor for surface application, with a detection coverage of 200° and 360°, allowing a wide detection range.
Allows application on walls, corners and edges, with the appropriate support included.
It can be used both indoors and outdoors thanks to its high level of protection.
Allows continuous time adjustment and twilight regulation.
It can be installed on walls, corners and edges, making it the ideal item for monitoring external areas, entrances, access roads, parking areas, underground parking lots, warehouses with high-rise storage racks, among others.
In this detector it is possible to adjust the programming through the potentiometers or through the RC3 control.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 200º/360º |
| Detection range | 24m |
| Type of protection | IP55 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg – 30 min |
| Ideal mounting height | 1.8m - 10m -> wall, corners or edges |
| Application | Protruding - walls, corners |
| Measures | 75.5mm x 118.8mm |
| Color | White |
| Command | Does not include |
