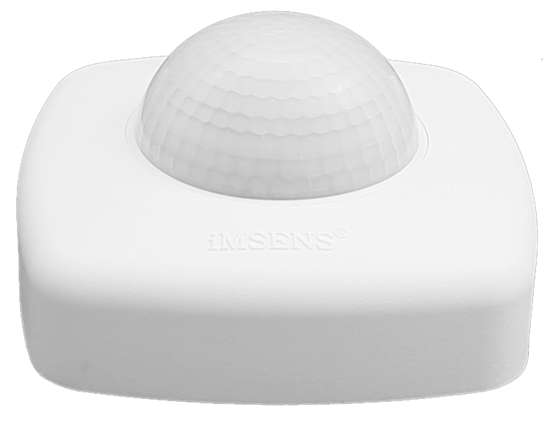

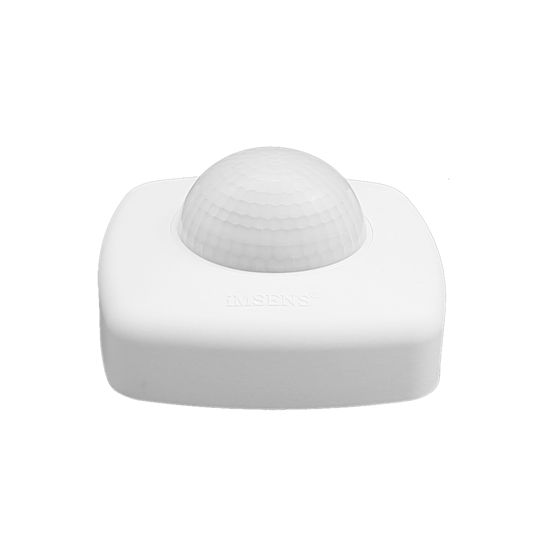

Surface-mounted motion detector with infrared sensor for ceiling and wall installation.
The generous connection space allows for easy pre-installation of the standard power supply unit.
The supplied masks are used to limit the detection area.
By removing the snap-on cover, the detection range can be adjusted quickly and precisely.
It allows for continuous adjustment of the time and twilight setting. Suitable for ceiling and wall mounting, it is ideal for carports, porches, garages and similar areas, as its high protection rating (IP54) protects it from the elements.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 20m |
| Type of protection | IP54 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg - 10 min |
| Ideal mounting height | 2m - 8m -> ceiling| 1.8m - 2.2m -> wall |
| Application | Salient - wall and ceiling |
| Measures | 58.3mm x 102.5mm |
| Color | White |
| Masks | Includes |
