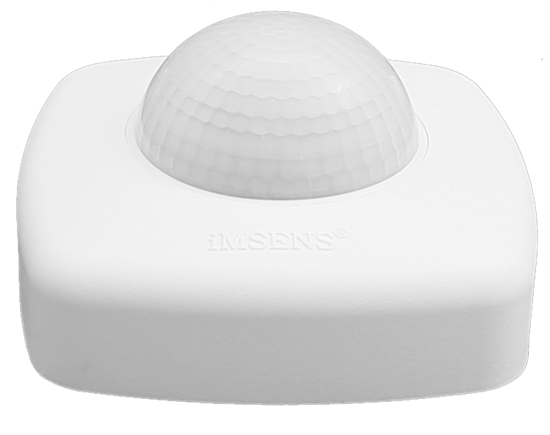

Presence detector with infrared sensor for surface-mounted installation on ceilings and walls.
The lens has been designed to provide optimum sensitivity, enabling it to detect even the slightest movement.
It is easy to install, thanks to the generous connection space, and wiring is simple and straightforward.
The supplied cut-outs are used to limit the detection area.

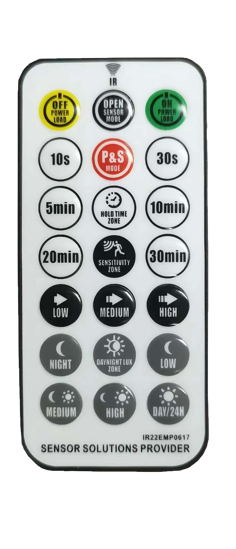

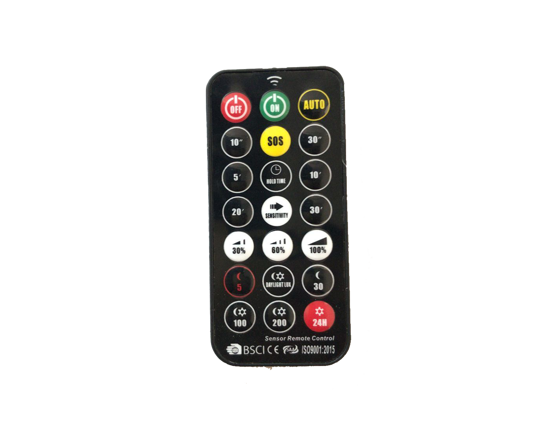

The RC3 remote control is included with the detector and is used for all programming.
It allows for continuous adjustment of the time and twilight settings.
It is the ideal product for areas with low levels of movement, such as classrooms, halls, entrance halls and open-plan offices, amongst others.
Its high protection rating (IP55) protects it against the elements.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 6m - presence / 20m - tangential |
| Type of protection | IP55 |
| Twilight Regulation | 5 - 200 Lux |
| Time adjustment | 10 seg – 30 min |
| Ideal mounting height | 2m - 12m -> ceiling| 1.8m - 3m -> wall |
| Application | Salient - wall and ceiling |
| Measures | 102.5mm x 102.5mm |
| Color | White |
| Masks | Includes |
| Command | Includes |
