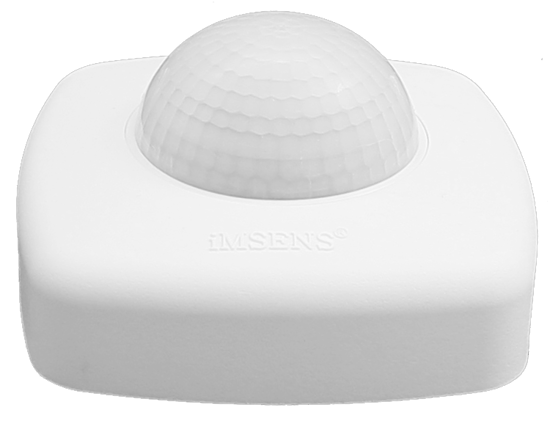

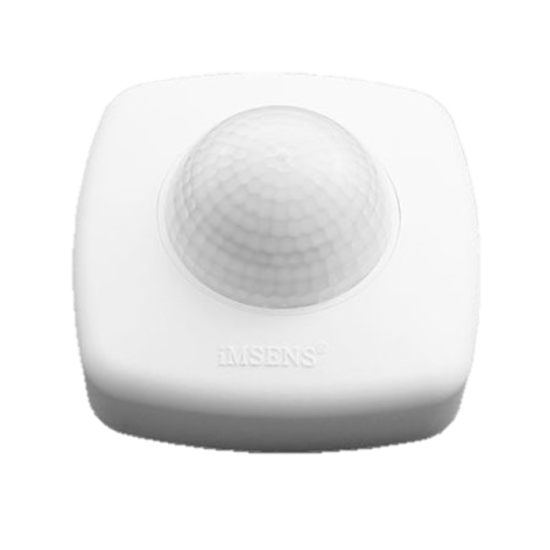

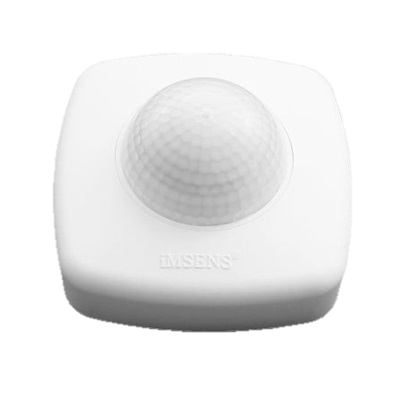

Surface-mounted motion detector with infrared sensor for ceiling or wall installation in corridors or passageways.
It allows for easy pre-installation of the standard power supply unit, thanks to the generous connection space, and wiring is also simple and convenient.

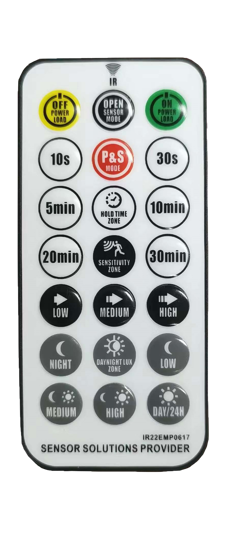

The RC3 remote control is included with the detector and is used for all programming.
It allows for continuous adjustment of the time and twilight setting.
It can be installed on ceilings and walls in locations such as halls, shelters, general warehouses, and others.
Its high protection rating (IP55) protects it from the elements.
It can also be installed in locations with high ceilings.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 4m - width / 20m - length |
| Type of protection | IP55 |
| Twilight Regulation | 5 - 200 Lux |
| Time adjustment | 10 seg – 30 min |
| Ideal mounting height | 2m - 12m -> ceiling| 1.8m - 3m -> wall |
| Application | Salient - wall and ceiling |
| Measures | 58.3mm x 102.5mm |
| Color | White |
| Masks | Includes |
| Command | Includes |
