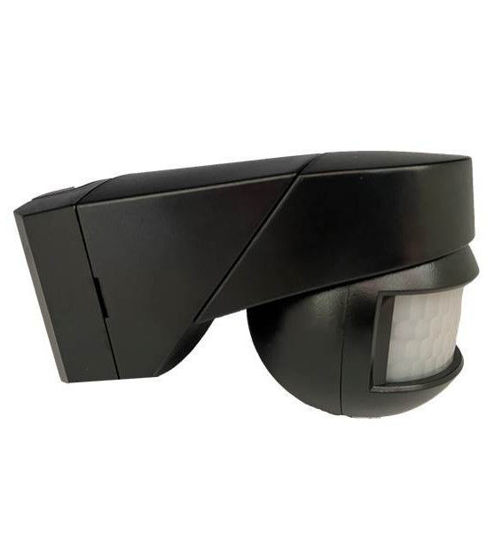

Motion detector with protruding infrared sensor, with 270° and 360° detection coverage, allowing a wide detection range due to its lens that can be oriented in any direction on its axis.
It can be applied to walls, ceilings and corners, and comes with the appropriate support.
It can be used both indoors and outdoors thanks to its degree of protection.
Allows continuous time adjustment and twilight regulation.
It is the ideal item for monitoring external areas, entrances, access routes, parking areas, underground parking lots, warehouses with high-rise storage racks, among others.
In this detector it is possible to adjust the programming through the potentiometers or through the RC3 control.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 270º / 360º |
| Detection range | 12m |
| Type of protection | IP55 |
| Twilight Regulation | 10 - 2000 Lux |
| Time adjustment | 10 seg - 10 min |
| Ideal mounting height | 2.2m - 3.5m -> ceiling| 1.8m - 6m -> wall |
| Application | Protruding - wall, ceiling and corners |
| Measures | 114mm x 78.5mm |
| Color | White or black |
| Command | Does not include |
