iMS Multi 360º Dali2 Dim Mini Presence WHI - 072662 iC

Presence detector with DALI 2 DIN interface for recessed or surface-mounted application on walls or ceilings.
Manufacturer: BYiMSENS®
€180.61

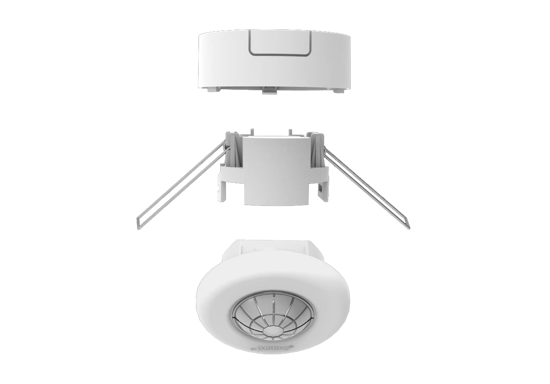

The presence detector with DALI2 DIM interface has a 360º angle and is ideal for multipurpose applications (recessed or surface-mounted), thanks to the accessories already included: the springs and the surface-mounting box.

It allows installation on the ceiling and wall, making it the ideal item for small spaces where it is necessary to manage the desired luminous flux in the work environment by compensating the light from the luminaires. Ideal for places such as: technical rooms, medical offices, offices, corridors, among others.

Its DALI2 technology allows interconnection with other equipment with the same DALI technology and/or other interfaces, thus obtaining effective control of all lighting equipment, allowing effective and permanent management, saving all its resources and prolonging them.

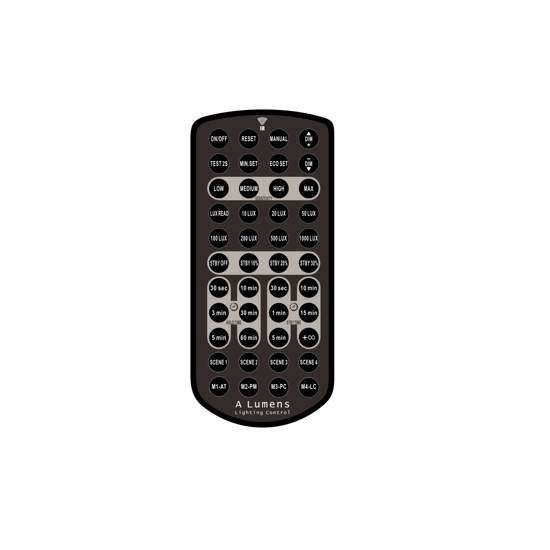

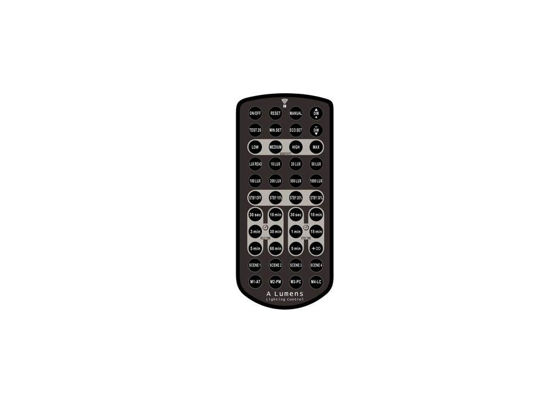

The remote control allows a wide range of changes, programming, adjustments, among others.

The factory values ​​can be changed via the remote control to meet the user's needs depending on the application area.

Choosing the most suitable Mode or pre-defined scenario, or adapting the characteristics, will allow energy savings, since light compensation can be done, making the most of natural light, thus not using more artificial light than necessary and prolonging the life of connected equipment, thus achieving energy efficiency as a whole.

Attribute nameAttribute value
Sensor typeInfrared
Power1000W (incandescent and fluorescent lamps) / 300W (energy saving lamps and LED)
Voltage220V/AC-240V/AC / 50HZ
Detection angle360º
Detection range4m - presence / 7m - tangential
Type of protectionIP20 / IP55
Twilight Regulation3 - 2000 Lux
Time adjustment30 seg - 30 min
Ideal mounting height2m - 4m -> ceiling | 1.5m - 2.5m -> wall
ApplicationProtruding or recessed - ceiling and wall
Measures74mm x 46.5mm
ColorWhite
CommandIncludes
MasksIncludes
