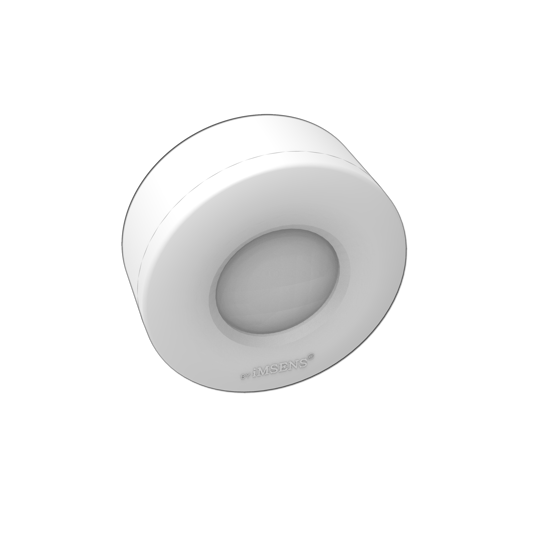

iMS Multi 360º HF Effective Presence WHI – 072808

Presence detector with high frequency sensor for recessed or surface-mounted application on walls and ceilings.
Manufacturer: BYiMSENS®
€175.09

Presence detector with high frequency sensor for recessed or surface-mounted application on walls and ceilings.

It has innovative high frequency technology in its detection formula. This is because it is an effective on-site detection, making it possible to detect visible or invisible movements, such as a person's breathing, heartbeat or even blood flow. For example, continuous movements, running, walking, moving, as well as static actions, sitting, lying down, actions with little movement.

It works by emitting short-wave and long-wave signals, then receiving the signal reflected from the walls indicating adjacent objects, resulting in the sensor's operation.

The detector activates after detecting movement as long as it senses the presence of people. It is the ideal item for places where movements are reduced and/or completely static.

Attribute nameAttribute value
Sensor typeHigh Frequency
Power2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED)
Voltage220V/AC-240V/AC / 50HZ
Detection angle360º
Detection range4m - effective presence / 5.4m - tangential
Type of protectionIP20 / IP54
Twilight Regulation10 - 100 Lux
Time adjustment10 seg – 15 min
Ideal mounting height2.2m - 4m -> ceiling | 1.5m - 1.8m -> wall
ApplicationProtruding or recessed - ceiling and wall
Measures93mm x 40mm
ColorWhite
