The presence detector with four infrared pyrosensors and an acoustic sensor, that is, with dual technology, with a 360º angle and a range of up to 6m in person and 20m in tangential, for multipurpose applications as it allows for built-in or surface-mounted installation, thanks to the accessories already included: the springs and the surface-mounting box.
It is an ergonomic and versatile detector, for application on ceilings and walls.

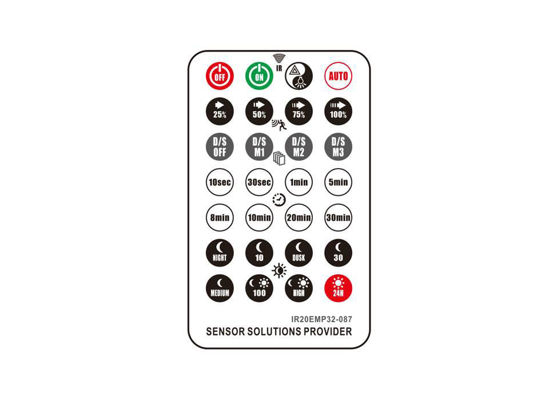

The RC4 control is included with the detector and comes with pre-defined programs.
It is through it (remote control) that all programming is done.
The 4 pre-defined programs are:
- D/S M1 - acoustic function, which, when selected, will turn on the luminaire if sound is detected;
- D/S M2 – acoustic or PIR function, which, if selected, will cause the luminaire to turn on if sound is detected, or if movement is detected;
- D/S M3 – acoustic and PIR function simultaneously, which when selected will make the luminaire turn on only if there is sound and movement at the same time;
- D/S OFF which is the free function, deactivates the other 3 functions and allows the detector to be parameterized by regulating time, sensitivity and lux. In this option the detector will work as a normal presence detector.
It is the ideal item for places such as: classrooms, technical rooms, doctors' offices, offices, beauty salons, gyms, changing rooms, meeting rooms, open spaces, among others.
