Presence detector with infrared sensor for flush-mounted or surface-mounted installation on ceilings and walls.
It is suitable for a wide range of applications as it can be installed either flush-mounted or surface-mounted, thanks to the accessories included: the springs and the surface-mounting box.

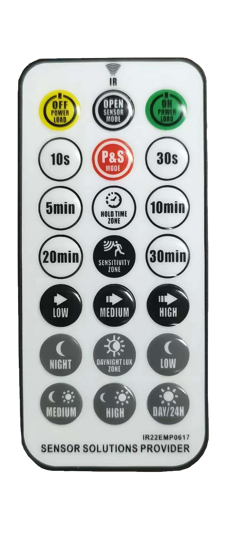

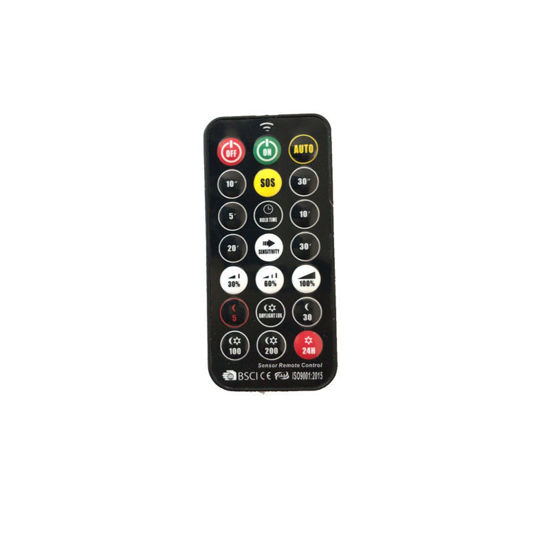

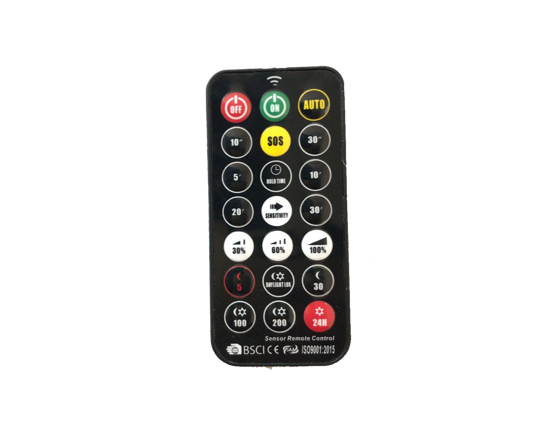

The RC3 remote control is included with the detector and is used for all programming.
It is the ideal product for areas with low levels of movement, such as: classrooms, halls, entrance halls, amongst others.
Its high protection rating (IP20/IP55) protects it against the elements.
| Attribute name | Attribute value |
|---|
| Sensor type | Infrared |
| Power | 2000W (incandescent and fluorescent lamps) / 1000W (energy saving lamps and LED) |
| Voltage | 220V/AC-240V/AC / 50HZ |
| Detection angle | 360º |
| Detection range | 6m - presence / 20m - tangential |
| Type of protection | IP20 / IP55 |
| Twilight Regulation | 5 - 200 Lux |
| Time adjustment | 10 seg – 30 min |
| Ideal mounting height | 2m - 12m -> ceiling| 1.8m - 3m -> wall |
| Application | Protruding or recessed - ceiling and wall |
| Measures | 105mm x 58.7mm |
| Color | White |
| Command | Includes |
